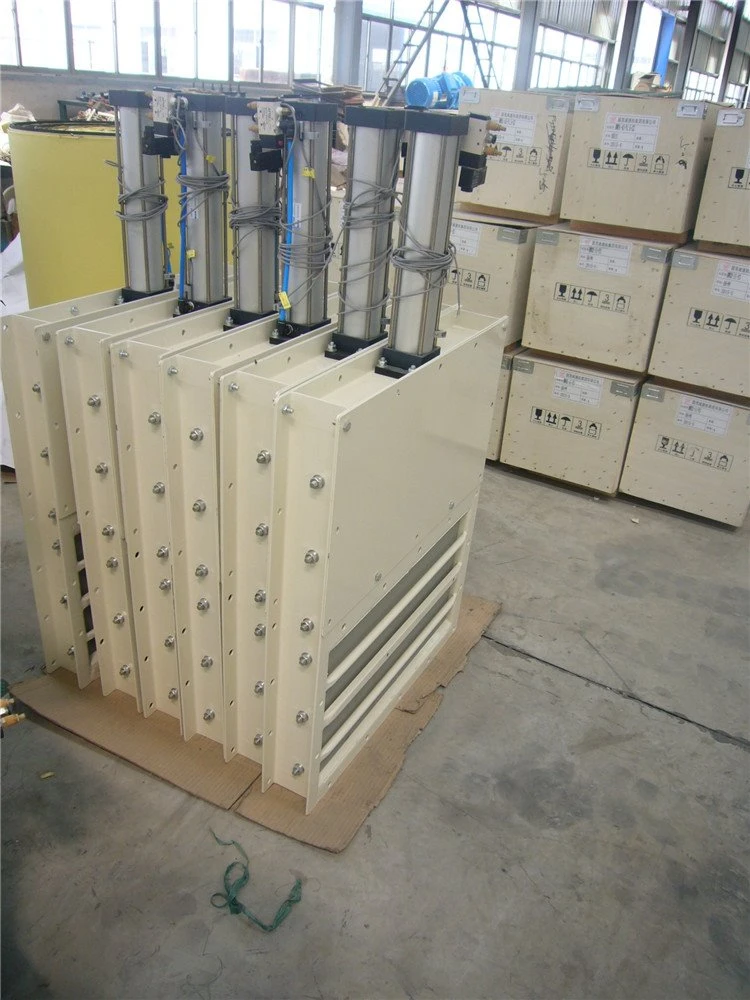

TZMD Feed Electric Gate
Lub rooj vag li qub tsim thiab ua raws li qhov xwm txheej, nrog rau cov yam ntxwv ntawm cov qauv tsim nyog, kev ua haujlwm ruaj khov thiab siv tau yooj yim. Lub rooj vag hluav taws xob tsim tawm tuaj yeem ua rau muaj kev loj hlob sai ntawm kev ua qoob loo thiab kev lag luam pub khoom noj.
Lub rooj vag li qub tuaj yeem tsim thiab tsim raws li cov neeg siv khoom xav tau.
Txoj cai ntawm kev thov
Qhov ntom ntom ntawm cov khoom: =0.2-1.8T / m3
Qhov kub ntawm cov khoom: tsis siab tshaj 80 degree
Cov dej noo
Cov ntsiab lus noo noo yog txheeb ze nrog qhov loj me thiab viscosity ntawm cov khoom; Feem ntau cov khoom, uas tsis yog loosed tom qab agglomerated los ntawm kneading los ntawm tes, yuav tsis haum
Dav siv rau cov khoom noj los yog tawm hauv cov khoom noj, khoom noj, hmoov nplej, tshuaj lom neeg, ntxhia, metallurgy, cement industries.
Daim ntawv thov, adaptability thiab lub hauv paus ntsiab lus ntawm kev thov
Daim ntawv thov
Lub rooj vag pneumatic feem ntau yog siv los tswj kev pub noj thiab tawm ntawm cov khoom.
Kev muag khoom
1. Txhim khu kev xa khoom lub sijhawm.
2. Kev tswj xyuas nruj heev.
3. Cov neeg siv phau ntawv thiab cov khoom seem yog muab pub dawb.
Technical parameters
Qauv | Lub tog raj kheej qauv | Ua hauj lwm siab | Sib nqus hloov | Theoretical zog | Theoretical nro | Muaj peev xwm |
TZD 1930 | DNCB-40-200-PPV-A | 0.6-12 | SM1-8-K2.5-E | 754 | 633 | 30 |
TZM 2430 | DNCB-40-250-PPV-A | 0.6-12 | SM1-8-K2.5-E | 754 | 633 | 50 |
TZD 2840 | DNCB-50-320-PPV-A | 0.6-12 | SM1-8-K2.5-E | 1178 | 990 | 80 |
TZM 3650 | DNCB-50-400-PPV-A | 0.6-12 | SM1-8-K2.5-E | 1178 | 990 | 130 |
TZM 3950 | DNCB-50-400-PPV-A | 0.6-12 | SM1-8-K2.5-E | 1178 | 990 | 150 |
TZM 4660 | DNCB-63-500-PPV-A | 0.6-12 | SM1-8-K2.5-E | 1870 | 1682 | 200 |
TZM 5470 | DNCB-63-550-PPV-A | 0.6-12 | SM1-8-K2.5-E | 1870 | 1682 | 300 |
TZM 63 110 | DNCB-80-700-PPV-A | 0.6-12 | SM1-8-K2.5-E | 3016 | 2721 | 500 |
Nco tseg:Qhov saum toj no theoretical thrust thiab theoretical nro yog xam ntawm atmospheric siab ntawm 6 bar.
