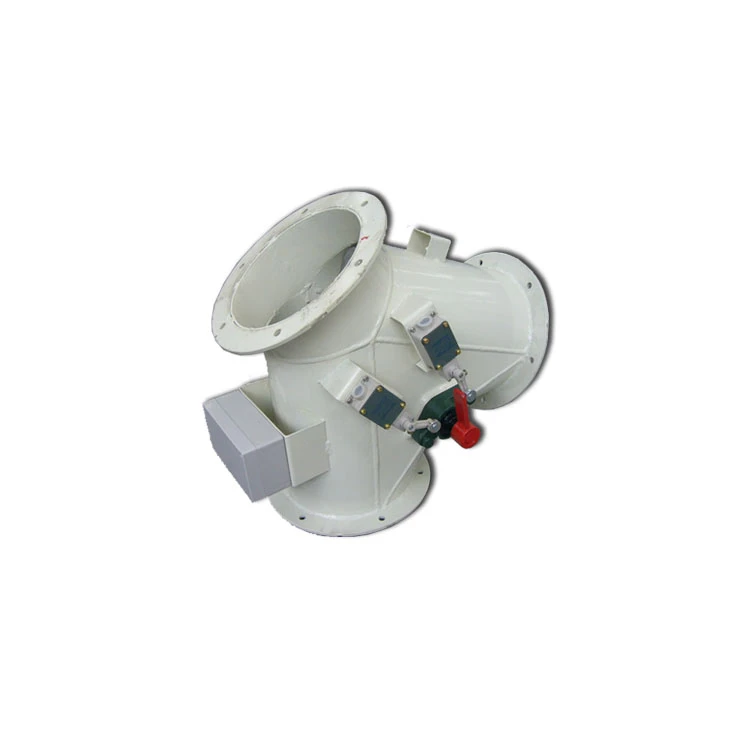

Square Hom Diverter

Square Type Diverter

P1040200

Paub meej:

Yooj yim thiab compact qauv, yooj yim installation
Kev nyab xeeb thiab txhim khu kev qha khiav, kev saib xyuas qis
30 degree thiab 45 degree spouts muaj

Xa kev nug

Ces

Hauj lwm lawm

Kev tsis

Square diverter hom

Yooj yim thiab compact qauv, yooj yim installation

Kev nyab xeeb thiab txhim khu kev qha khiav, kev saib xyuas qis

30 degree thiab 45 degree spouts muaj

Spout cheeb tsam txawv ntawm 100100 500500 cm²

Technical parameter

Item Qauv	Pneumatic lub tog raj kheej qauv	Ua hauj lwm siab （bar）	Sib nqus hloov	Theoretical zog （N）	Theoretical nro （N）	Capacity (T/h)
TBDQ2020/45 degree	DNCB-50-250-PPV-A	0.6-12	SM1-8-K2.5-E	1178	990	30
TBDQ2020/30 degree	DNCB-50-200-PPV-A	0.6-12	SM1-8-K2.5-E	1178	990	30
TBDQ2525/45 degree	DNCB-50-250-PPV-A	0.6-12	SM1-8-K2.5-E	1178	990	50
TBDQ2525/30 degree	DNCB-50-200-PPV-A	0.6-12	SM1-8-K2.5-E	1178	990	50
TBDQ3030/45 degree	DNCB-50-250-PPV-A	0.6-12	SM1-8-K2.5-E	1178	990	100
TBDQ3030/30 degree	DNCB-50-200-PPV-A	0.6-12	SM1-8-K2.5-E	1178	990	100
TBDQ4040/45 degree	DNCB-63-250-PPV-A	0.6-12	SM1-8-K2.5-E	1870	1682	300
TBDQ5050/45 degree	DNCB-63-250-PPV-A	0.6-12	SM1-8-K2.5-E	1870	1682	500
TBDQ6060/45 degree	DNCB-63-250-PPV-A	0.6-12	SM1-8-K2.5-E	1870	1682	700
TBDQ8080/45 degree	DNCB-80-250-PPV-A	0.6-12	SM1-8-K2.5-E	3016	2721	1000

Nco tseg:Qhov saum toj no theoretical thrust thiab theoretical nro yog xam ntawm atmospheric siab ntawm 6 bar.

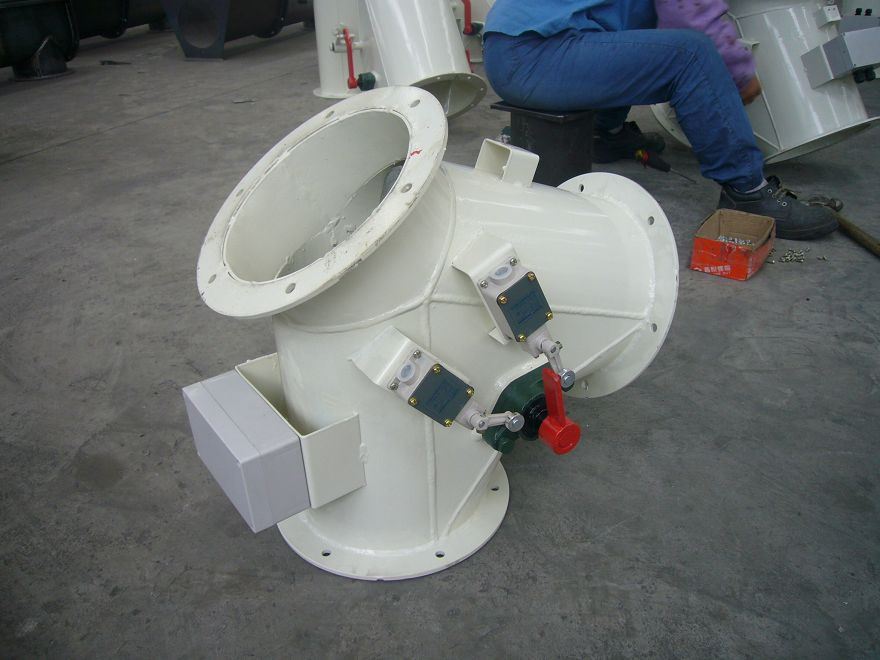

2(001)
