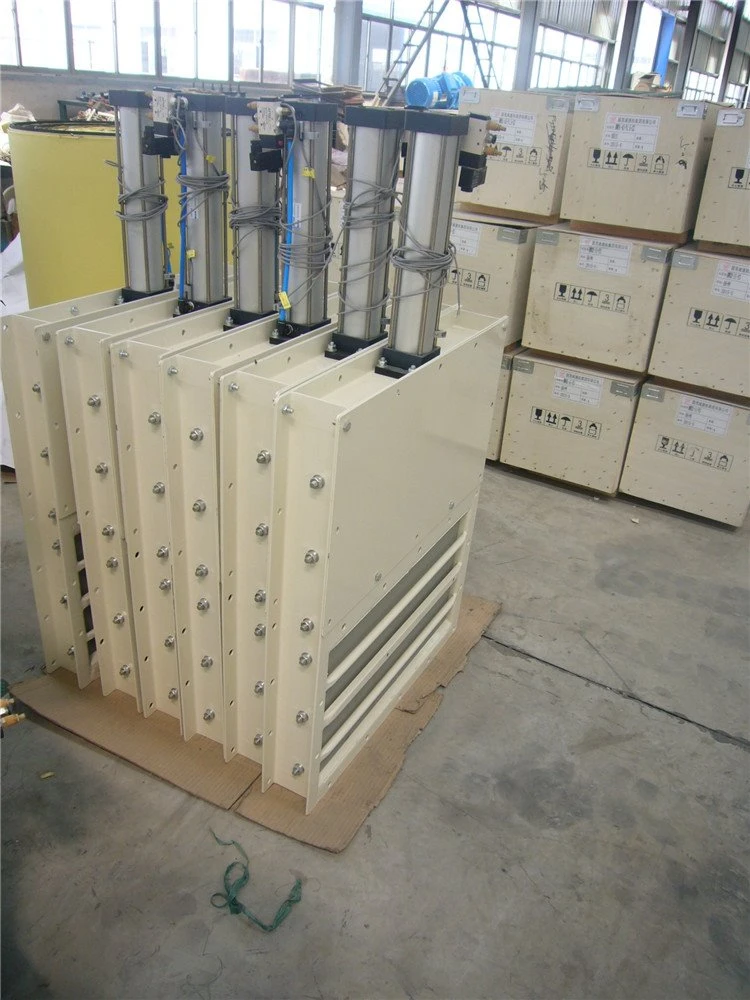

TZMS Series gate biomass
Kev tsim kho hnyav, yooj yim thiab txhim khu kev qha rau xyoo ntawm kev ua haujlwm
Ib qho yooj yim installation, tsis tshua muaj txij nkawm
Spout area varied from 100x100 800x800 cm²
Dav siv rau cov khoom noj los yog tawm hauv cov khoom noj, khoom noj, hmoov nplej, tshuaj lom neeg, ntxhia, metallurgy, cement industries.
Daim ntawv thov, adaptability thiab lub hauv paus ntsiab lus ntawm kev thov
Daim ntawv thov
Lub rooj vag pneumatic feem ntau yog siv los tswj kev pub noj thiab tawm ntawm cov khoom.
Txoj cai ntawm kev thov
Qhov ntom ntom ntawm cov khoom: =0.2-1.8T / m3
Qhov kub ntawm cov khoom: tsis siab tshaj 80 degree
Kev tiv thaiv tawg
Kev tu huv
ib. Nws yog ib qho tseem ceeb rau kev ua haujlwm kev nyab xeeb kom cov chaw uas muaj cov plua plav flammable huv si.
b. Don't stack bagged or bulk materials among the machines.
c. Tag nrho cov khoom siv conveying, cyclone separators thiab plua plav collectors yuav tsum tau khaws cia rau hauv qhov zoo kom tsis txhob muaj plua plav tawm mus rau txhua qhov chaw. Tshwj xeeb tshaj yog tiv thaiv cov kav dej thiab cov npog sab saum toj los ntawm kev xau.
d. Ntxuav ntau hom plua plav tsis tu ncua thiab tag nrho kom tsis txhob muaj kev pheej hmoo los ntawm cov plua plav tawg.
e. Tsis muaj plua plav deposited ntawm lub motors.
Kev tshuaj xyuas thiab kev saib xyuas tsis tu ncua
Tsis tu ncua xyuas tag nrho cov shafts thiab bearings ib lub lim tiam tsawg kawg kom tsis txhob muaj cua sov, thiab tsis tu ncua ntxiv lubricating roj.
Technical parameters
Qauv | Lub tog raj kheej qauv | Ua hauj lwm siab | Sib nqus hloov | Theoretical zog | Theoretical nro | Muaj peev xwm |
TZD 1930 | DNCB-40-200-PPV-A | 0.6-12 | SM1-8-K2.5-E | 754 | 633 | 30 |
TZM 2430 | DNCB-40-250-PPV-A | 0.6-12 | SM1-8-K2.5-E | 754 | 633 | 50 |
TZD 2840 | DNCB-50-320-PPV-A | 0.6-12 | SM1-8-K2.5-E | 1178 | 990 | 80 |
TZM 3650 | DNCB-50-400-PPV-A | 0.6-12 | SM1-8-K2.5-E | 1178 | 990 | 130 |
TZM 3950 | DNCB-50-400-PPV-A | 0.6-12 | SM1-8-K2.5-E | 1178 | 990 | 150 |
TZM 4660 | DNCB-63-500-PPV-A | 0.6-12 | SM1-8-K2.5-E | 1870 | 1682 | 200 |
TZM 5470 | DNCB-63-550-PPV-A | 0.6-12 | SM1-8-K2.5-E | 1870 | 1682 | 300 |
TZM 63 110 | DNCB-80-700-PPV-A | 0.6-12 | SM1-8-K2.5-E | 3016 | 2721 | 500 |
Nco tseg:Qhov saum toj no theoretical thrust thiab theoretical nro yog xam ntawm atmospheric siab ntawm 6 bar.
