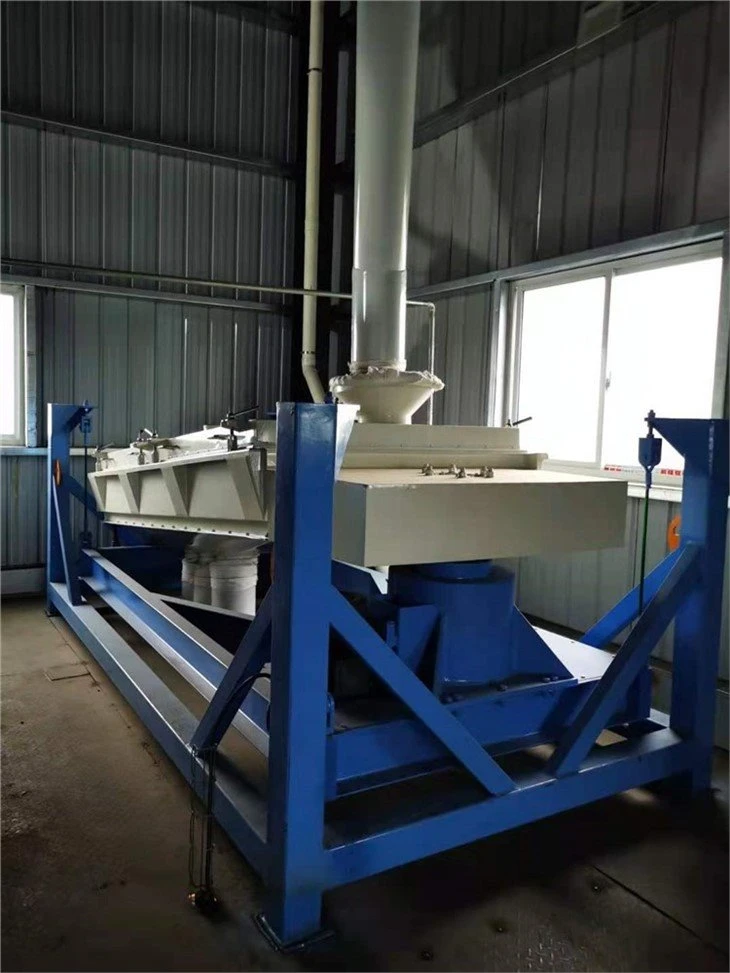

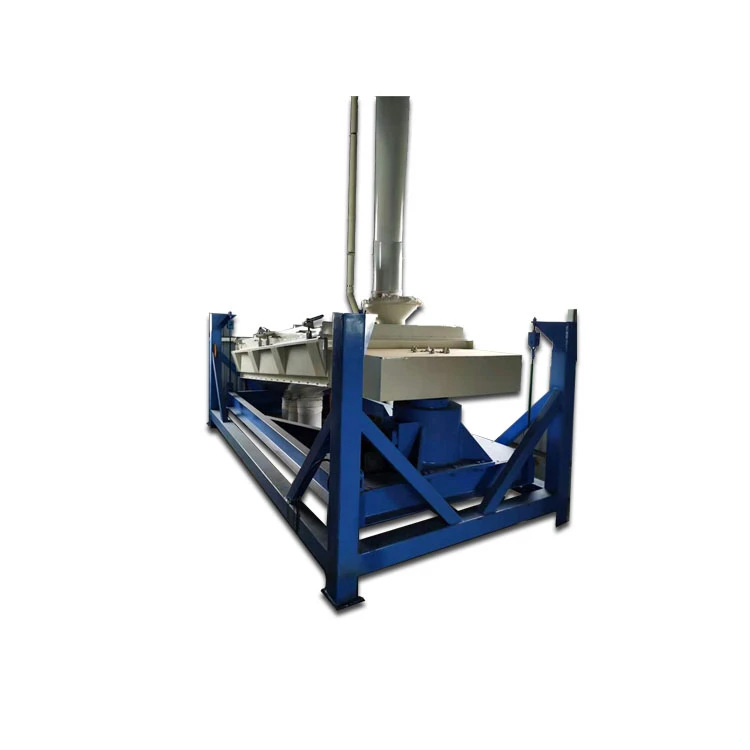

Vibrating screener
Application and adaptability
Rota-shake sifter is suitable for screening and grading of mashes and pellets, and preliminary cleaning of feedstuffs in feed mills, and grading of intermediate products in large and middle scaled feed mills. In addition, they can also be widely used for screening and grading of feedstuffs and finished products in cereal and food processing, chemical engineering, sugar engineering, mining and papermaking industries.
Features
Balanced by overweight, there is little vibration and low noise.
The driving device without any gears needs not lubricating oil and is free of oil leakage.
The tail elastic support instead of gliding support can greatly lower noise and improve grading performance.
With internally streamline designed material outlet, there is neither material deposition nor cross contamination.
The pressure mechanism is simple and easy for rapid sieve replacement.
Two-layer sieve, three-layer sieve and two-layer sieve with double feed inlets are available.
This model is suitable for the cleaning and grading treatment of powdery and granular materials or products in feed mills.

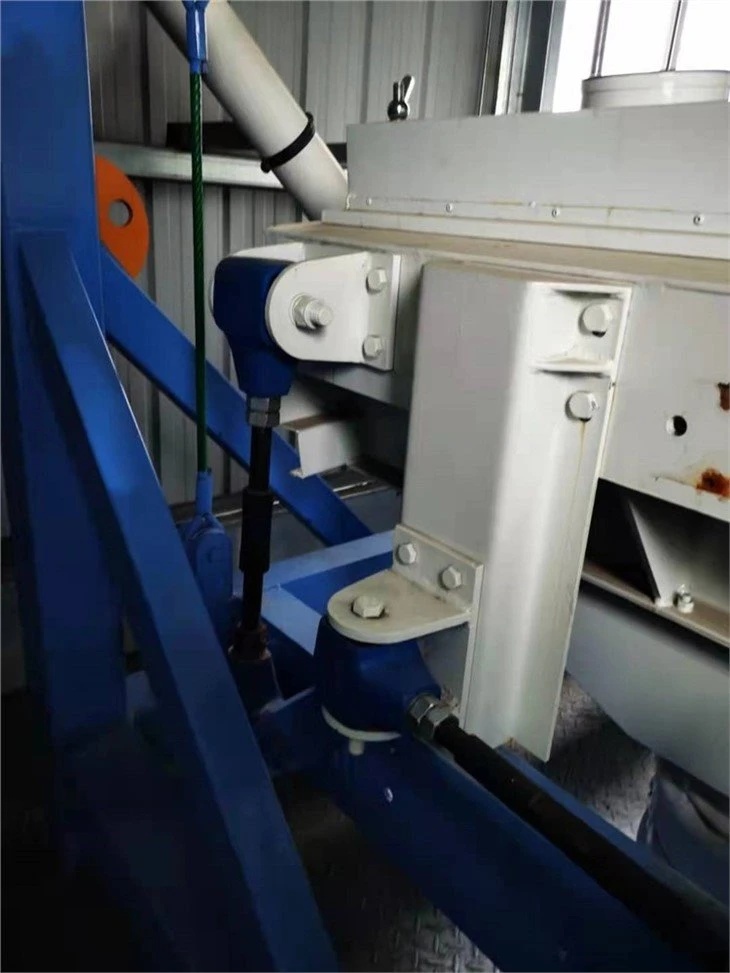

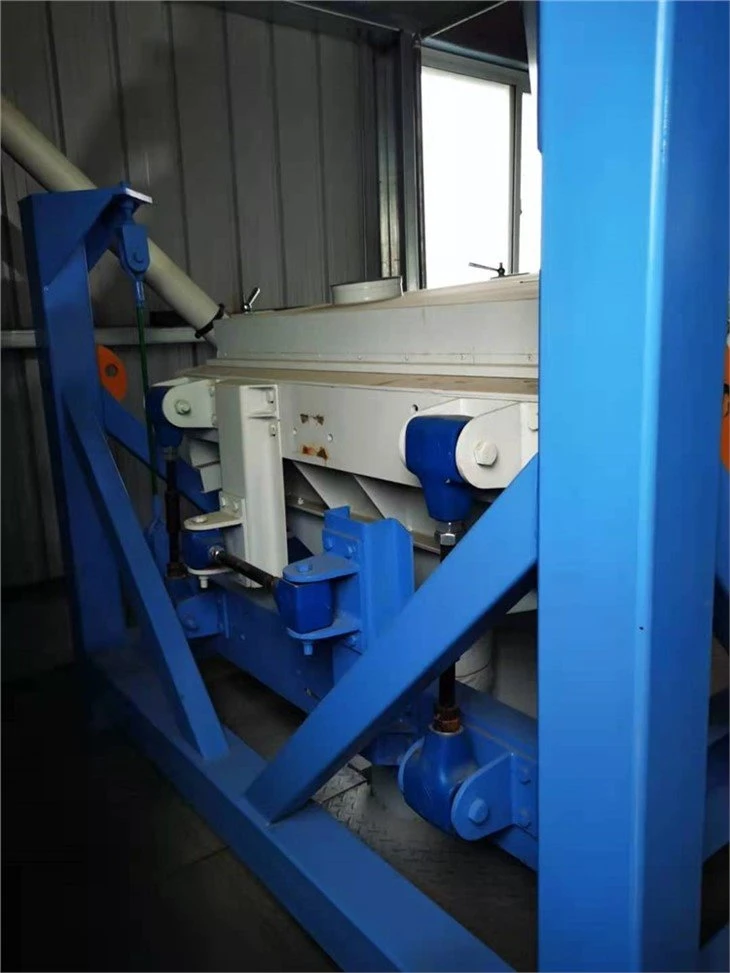

Balance weight, suspended elastic support, swing design and low noise.
Changing the screen is very easy.
Technical parameters
Model | Capacity(T/h) | Power(Kw) |
SFJH802B | Pellet: 8-10 | 2.2 |
SFJH1102B | Pellet:10-13 | 3.0 |
SFJH1302B | Pellet: 14-18 | 3.0 |
SFJH1402B | Pellet: 20-22 | 4.0 |
Double-deck sifter, B type | ||
Model | Capacity(T/h) | Power(Kw) |
SFJH802C | Pellet: 5-8 | 2.2 |
SFJH1102C | Pellet: 8-10 | 2.2 |
SFJH1302C | Pellet: 10-15 | 3.0 |
SFJH1103C | Pellet: 8-10 | 3.0 |
SFJH1303C | Pellet: 10-15 | 3.0 |
Double-deck sifter, C type | ||
Model | Capacity(T/h) | Power(Kw) |
SFJH1402C | Pellet: 14-18 | 4.0 |
SFJH1532C | Pellet: 22-26 | 4.0 |
SFJH1403C | Pellet: 14-18 | 5.5 |
SFJH1533C | Pellet: 22-26 | 5.5 |
SFJH1802C | Pellet: 25-28 | 7.5 |
SFJH1803C | Pellet: 25-28 | 7.5 |
SFJH2102C | Pellet: 30-35 | 7.5 |
Triple-deck sifter, C type |
