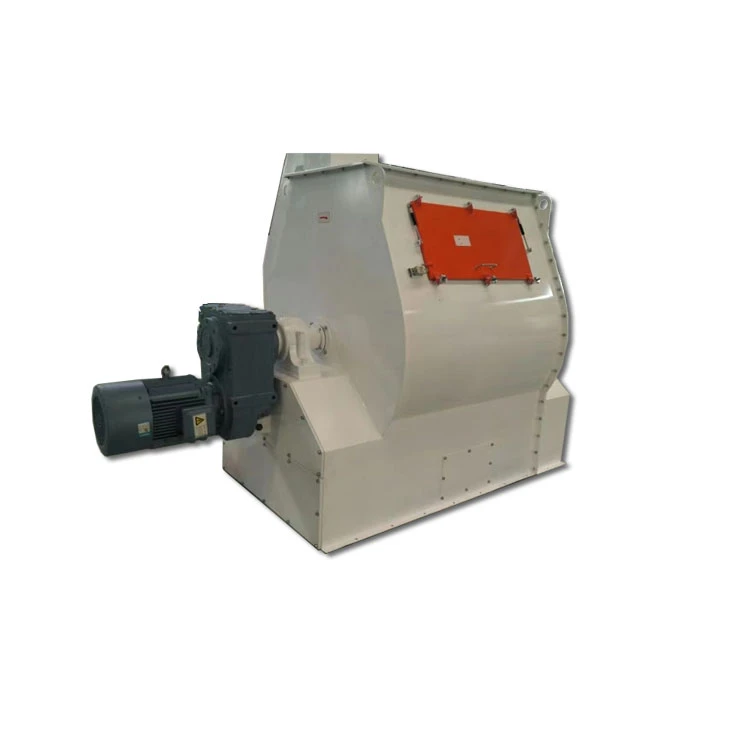

Feed mixer tshuab
Application thiab adaptability
SJHSA Series muaj txiaj ntsig zoo ob npaug - lub voj voog paddle mixers yog dav siv rau kev sib xyaw hmoov, granular, flaky, lumpish, nplaum thiab lwm yam khoom siv hauv kev pub, nplej, zaub mov, tshuaj, tshuaj, tshuaj thiab tshuaj tua kab kev lag luam, thiab tseem ua kom qhuav thiab txias. cov ntaub ntawv sib txawv.
Nta
-Lub rotor saws yog nyob rau hauv peb tus kheej proprietary ob - vajvoog qauv, uas yog yus muaj los ntawm nws lub sij hawm luv luv mixing thiab siab sib xyaw homogeneity, rau cov khoom siv sib xyaw homogeneity yog CV tsawg dua los yog sib npaug li 5 feem pua. lossis txawm txog li 2 feem pua 3 feem pua hauv 45s60s. Yog li, lub sij hawm sib tov yog luv luv thiab cov khoom siv ntawm cov khoom noj tuaj yeem txhim kho tau zoo;
{{0}}Txoj kev sib txawv loj ntawm cov khoom ntim: 0.10.8, muaj feem xyuam rau kev sib xyaw cov ntaub ntawv nrog qhov sib txawv tshwj xeeb lub ntiajteb txawj nqus thiab granularity thiab lwm yam. nyob rau hauv ntau yam lag luam;
-Tsev tsim tshwj xeeb rau kev sib khi yog siv rau ncej- kawg sealing mechanism, uas muaj kev ruaj ntseg sealing kev ua tau zoo, kev pab lub neej ntev thiab tsis muaj to;
- tawm sai sai thiab me ntsis seem: lub qhov rooj tawm yog nyob rau hauv lub foob pob - hom puv - hauv qab ob - nplooj qauv, yog li qhov tso tawm sai nrog me ntsis residues;
-Rau lub tshuab sealing ntawm lub qhov rooj tawm, peb cov cuab yeej tshwj xeeb patented ntawm huab cua-sac sealing yog siv, uas tuaj yeem ua rau qhov tsis xws luag ntawm lub rooj vag lub cev deformation, thiab nws yog kev ntseeg siab rau kev sib khi thiab tsis muaj qhov to. ;
-Cov cuab yeej ua kua ntxiv yog siv, uas yooj yim thiab nrawm rau kev ntxuav thiab hloov cov tshuaj tsuag nozzles. Ib hom cua atomizer spray nozzle yog siv, uas tuaj yeem txau tusyees yam tsis muaj agglomeration;
-Ib lub tshuab xa rov qab yooj yim yog siv, uas yooj yim rau kev thauj mus los thiab sab hauv thiab sab nraud sib txawv tuaj yeem sib npaug sai thaum pub mis.
A-Muaj homogeneity siab
Patented ob -lub voj voog paddle rotor, qhov sib xyaw ua ke yog ntau dua lossis sib npaug rau 97.7 feem pua (piv txwv li CV Tsawg dua lossis sib npaug rau 2.3 feem pua).
B-Hygienic design
Optimized paddle-rau- phab ntsa qhov sib txawv thiab qhib lub qhov rooj tawm, tsis muaj qhov seem, tsis muaj paug; huab cua tshwj xeeb-sac foob, tsis muaj dej; xaiv tau corrosion-resistant steel tsim.
C-Kev saib xyuas yooj yim
Cov qauv no muaj lub qhov rooj loj rau kev tu thiab tu, txuag sijhawm.
D-Kev ua haujlwm siab
High sib xyaw homogeneity nrog luv luv sib tov (60s90s ib batch) thiab tawm lub sij hawm.
Technical parameters
Qauv | Peev xwm (Kg / Batch) | Lub zog (Kw) | Volume (m3) |
SJHS0.2A | 100 | 2.2/3.0 | 0.2 |
SJHS0.5B | 250 | 5.5/7.5 | 0.5 |
SJHS1B | 500 | 11/15 | 1 |
SJHS2C | 1000 | 18.5/22 | 2 |
SJHS 3 | 1500 | 30/37 | 3 |
SJHS4A | 2000 | 37/45 | 4 |
SJHS6A | 3000 | 55 | 6 |
SJHS 8 | 4000 | 372 | 8 |
Lus Cim: Nyob rau hauv cov ntaub ntawv ntawm kev ntxiv kua, 3 feem pua siab tshaj | |||
