SJHS Series paddle tov khoom

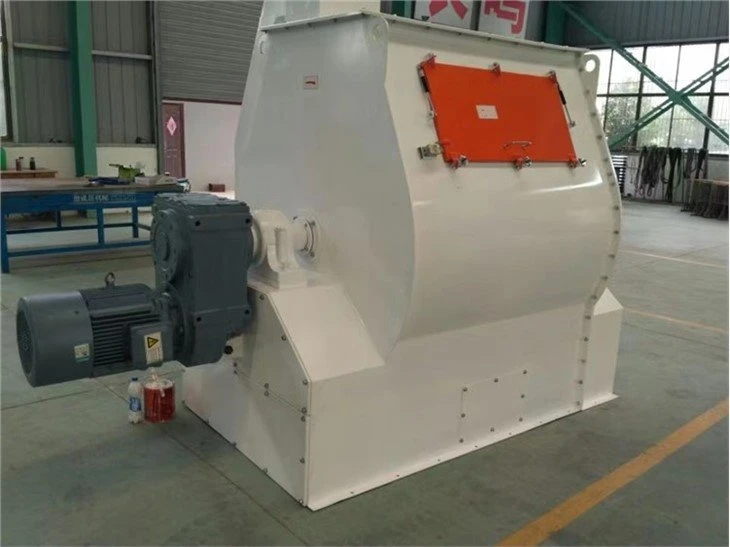

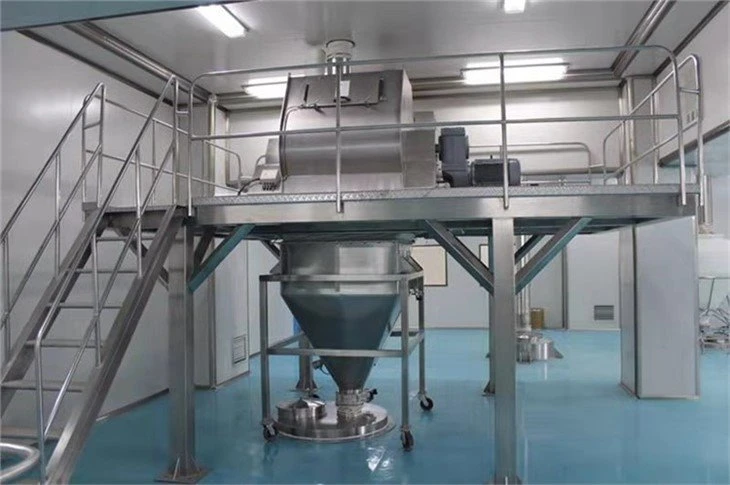

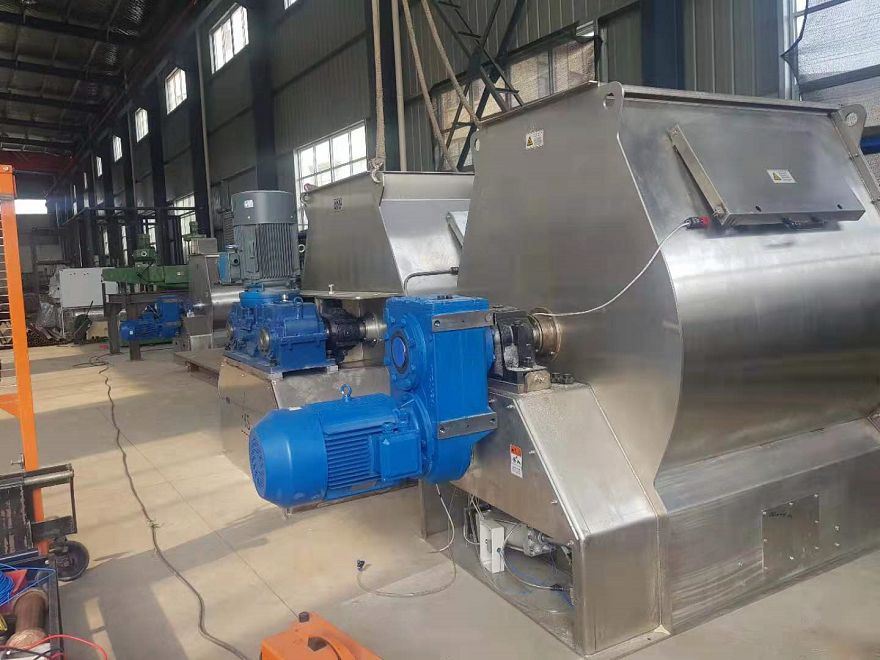

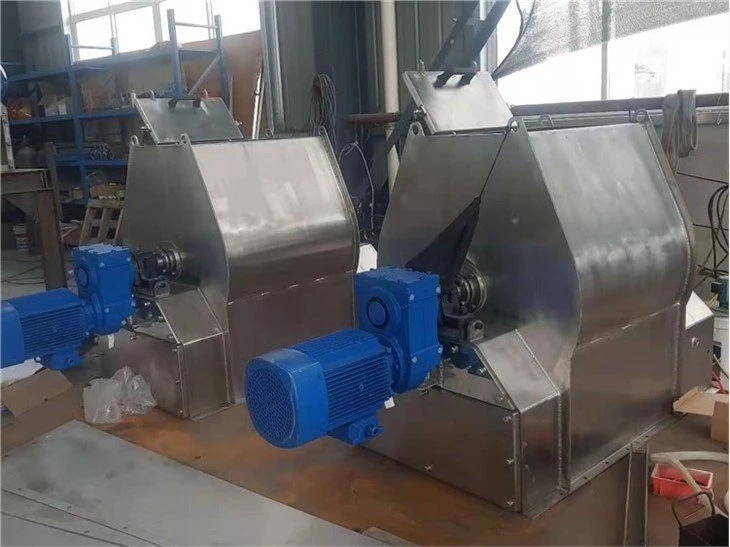

SJHS Ob Chav - lub voj voog paddle tov khoom yog lub tshuab ua kom muaj txiaj ntsig zoo nrog kev pub noj - rau cov qauv kev nyab xeeb khoom noj rau tsiaj noj, zaub mov thiab tsiaj txhu kev lag luam.
Khoom siv: Carbon steel lossis stainless, raws li cov neeg siv khoom thov.
A-Muaj homogeneity siab
Patented ob -lub voj voog paddle rotor, qhov sib xyaw ua ke yog ntau dua lossis sib npaug rau 97.7 feem pua (piv txwv li CV Tsawg dua lossis sib npaug rau 2.3 feem pua).
B-Hygienic design
Optimized paddle-rau- phab ntsa qhov sib txawv thiab qhib lub qhov rooj tawm, tsis muaj qhov seem, tsis muaj paug; huab cua tshwj xeeb-sac foob, tsis muaj dej; xaiv tau corrosion-resistant steel tsim.
C-Kev saib xyuas yooj yim
Cov qauv no muaj lub qhov rooj loj rau kev tu thiab tu, txuag sijhawm.
D-Kev ua haujlwm siab
High sib xyaw homogeneity nrog luv luv sib tov (60s90s ib batch) thiab tawm lub sij hawm.
Kev tshuaj xyuas thiab kev saib xyuas tsis tu ncua
Tshawb xyuas cov chains rau lawv qhov xwm txheej ua haujlwm ib txwm muaj, tsawg kawg ib zaug hauv ib lub lis piam
Tsis tu ncua xyuas cov cuab yeej kev nyab xeeb, tsawg kawg ib zaug ib lub lim tiam.
Tsis tu ncua xyuas thiab ntxuav cov pa rov qab hnab, tsawg kawg ib hnub ib zaug.
Txhawm rau kom tsis txhob muaj cua sov, nws yog ib qho tsim nyog yuav tsum tsis tu ncua xyuas cov haujlwm ntawm tag nrho cov shafts thiab bearings, tsawg kawg ib zaug ib lub lim tiam, thiab tsis tu ncua sau cov roj lubricating.
Nco ntsoov
-Thaum lub tshuab sib tov nyob rau hauv qhov chaw nres tsheb, yuav tsum tau ua tib zoo saib xyuas kom tsis txhob pib los ntawm ib qho kev sib tsoo pib.
-Nws tsis raug tso cai tshem tawm qhov kev tiv thaiv kev nyab xeeb rau cov saw pulley.
-Thaum lub tshuab ua haujlwm, nws yog txwv tsis pub muab ntiv tes ze ntawm qhov chaw khiav, xws li kev tshuaj xyuas, tu thiab tu thiab lwm yam tsis tuaj yeem ua tiav kom txog thaum lub tshuab tov khoom rotor tau nres kiag li.
-Kev nyab xeeb ntawm lub tshuab hluav taws xob
Ua ntej lub tshuab hluav taws xob raug txiav tawm, nws yog nruj me ntsis txwv tsis pub qhib lub thawv davhlau ya nyob twg kom tsis txhob muaj hluav taws xob poob.
Technical parameters
Qauv | Peev xwm (Kg / Batch) | Lub zog (Kw) | Volume (m3) |
SJHS0.2A | 100 | 2.2/3.0 | 0.2 |
SJHS0.5B | 250 | 5.5/7.5 | 0.5 |
SJHS1B | 500 | 11/15 | 1 |
SJHS2C | 1000 | 18.5/22 | 2 |
SJHS 3 | 1500 | 30/37 | 3 |
SJHS4A | 2000 | 37/45 | 4 |
SJHS6A | 3000 | 55 | 6 |
SJHS 8 | 4000 | 372 | 8 |
Lus Cim: Nyob rau hauv cov ntaub ntawv ntawm kev ntxiv kua, 3 feem pua siab tshaj | |||
