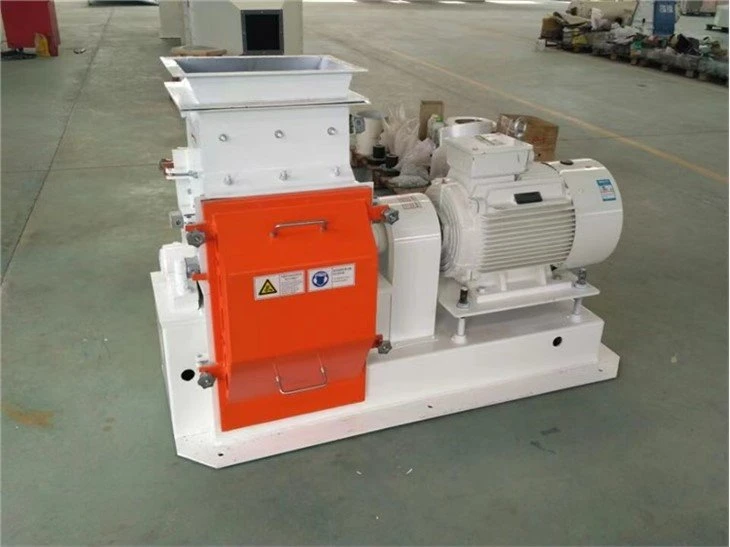

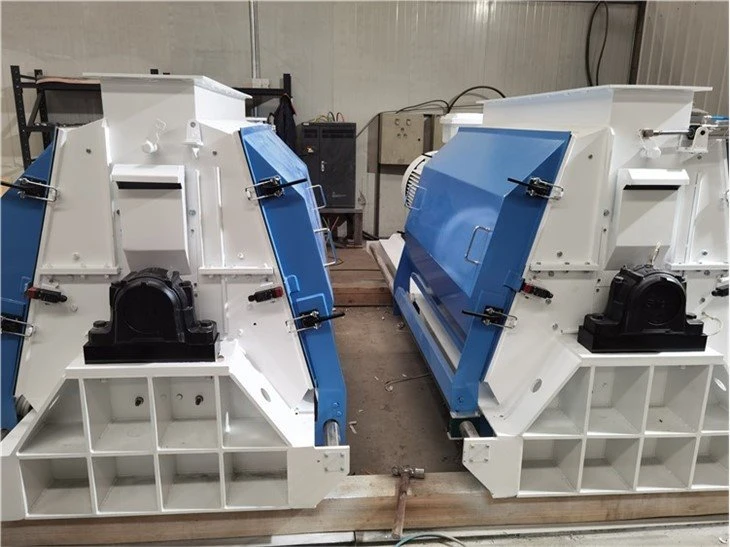

Milling pub tshuab
Cov qauv 56 no muaj nyob rau ntawm kev teeb tsa qis qis thiab kev teeb tsa ob zaug.
Optimal rauj kev npaj, muaj peev xwm nce.
Reversible rotor, nce kev pab cuam lub neej.
-Application thiab adaptability
Qhov no series ntawm rauj mills yog siv los zom ntau yam granular raw cov ntaub ntawv, xws li pob kws, kaoliang, nplej thiab barley, taum, ncuav thiab lwm yam. Lawv muaj feem xyuam rau kev sib tsoo granular raw khoom nyob rau hauv ntau yam tsiaj txhu pub mills, aqua feed mills, cawv nroj tsuag, txiv qaub nroj tsuag, zaub mov factories thiab edible roj mills.
-Cov yam ntxwv
Siab optimized rauj kev npaj.
Ntau yam cuab yeej tshawb nrhiav kom raug suav nrog cov cuab yeej sib luag dynamic nrog kev ua haujlwm siab tuaj yeem ua kom cov haujlwm ua haujlwm tau zoo dua, qis suab nrov thiab ua haujlwm zoo tshaj plaws.
Lub rotor uas rotates nyob rau hauv coronation thiab reversion yuav ua rau kom lub neej kev pab cuam ntawm hnav qhov chaw.
Lub rauj zeb yog tus cwj pwm los ntawm cov qauv tsim nyog, durability, kev ntseeg tau, kev yooj yim installation thiab kev ua haujlwm, tsis tshua muaj kev vibration thiab kev tsim khoom siab.
Muaj peev xwm nruab qhov siab tshaj plaws zaus hloov pauv feeder lossis hlau nplaum siv feeder, ua kom nws ua haujlwm ruaj khov.
- Cov xwm txheej ua haujlwm
Cov yam ntxwv ntawm cov khoom
Particle loj ntawm kev pub mis: ntug ntev tsis ntau tshaj 8mm
Volumetric hnyav: 0.15-0.8kg/dm3
Cov ntsiab lus dej: tsis ntau tshaj 18 feem pua
Lub cev ib puag ncig
Kub: -15-40 ° C
txheeb ze humidity: tsis siab tshaj 90 feem pua
Qhov siab: tsis siab tshaj 1000m
The working voltage should stable with a deviation not more than±5 percent .
Lus Cim: Thaum qhov siab tshaj 1000m, lub cev muaj zog kub yuav nce vim huab cua hloov maj mam; Thaum lub ntsuas kub qis dua -15 degree, nws yuav tsum tau siv cov roj lubricating kom zoo.
Technical parameters
Qauv | Muaj peev xwm | Hwj chim | Nco tseg |
TIAB SA 5630 | 1-2T/h | 15/20 Kw | 2. 0 hli |
TIAB SA 5640 | 4-6T/h | 30/37 Kw | Note: Grinding corn (moisture content Less than or equal to 14 percent , bulk density Greater than or equal to 690g/l) with Ø3.0mm screen hole size. |
TIAB SA 5660 | 17-22T/h | 22 kwv | Capacity (T/h) 8.0mm screen (crumbling) |
TIAB SA 5660 | 25-32T/h | 37 kwj | Capacity (T/h) 8.0mm screen (crumbling) |
