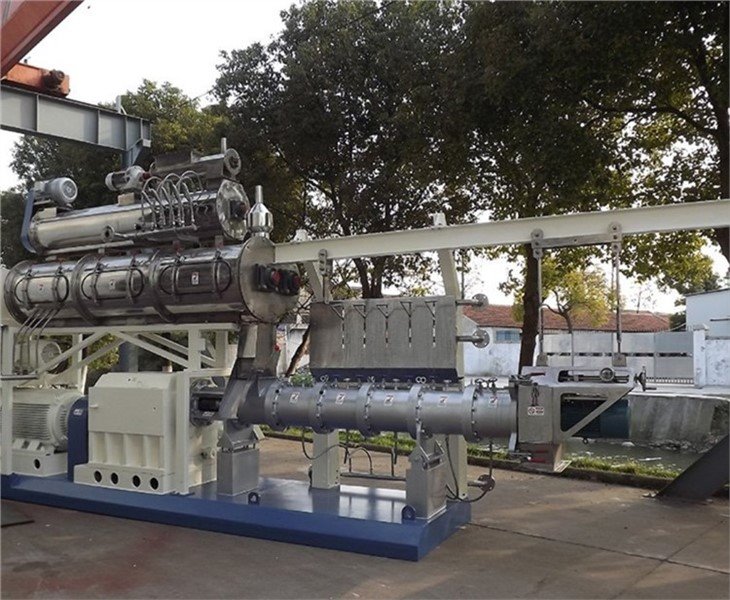

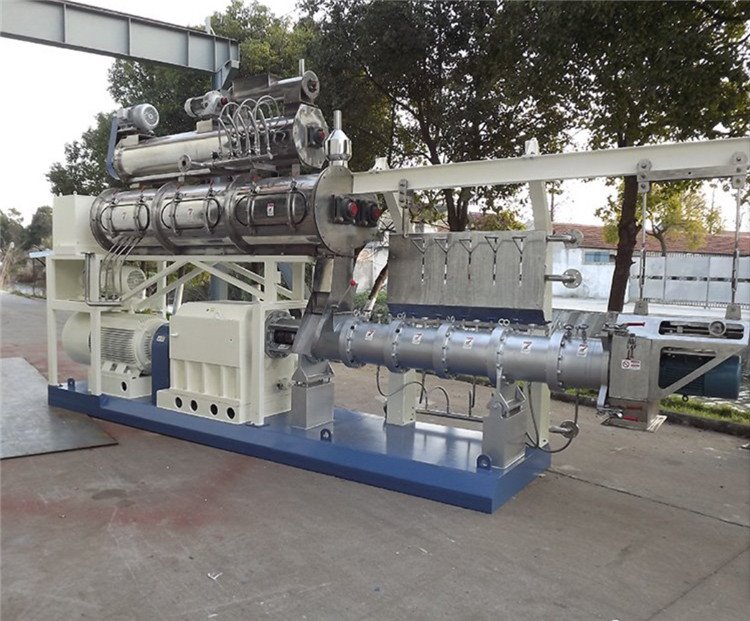

Twin ntsia hlau extrusion
Cov qauv no muaj txiaj ntsig zoo extruder rau aqua- pub, zaub mov, khoom noj tsiaj thiab cov khoom siv raw, tshwj xeeb tshaj yog cov ntawv nplaum.
Kev ua haujlwm yooj yim, kev ua haujlwm siab, siab yooj thiab siv tau
Nta
Lub extrusion muab rau ntau lawm cov khoom uas zoo superiority nyob rau hauv kev sib piv nrog rau lwm yam technologies. Vim tias nws sib xyaw ua haujlwm ntawm cov cuab yeej sib txawv hauv ib qho txheej txheem thaum extruding feem ntau, cov txheej txheem ntawm kev sib xyaw, extruding, txiav, ua noj, tsim thiab ziab cov txheej txheem nyob rau hauv ib qho kev kawm tiav tuaj yeem ua tiav tib lub sijhawm.
Nyob rau hauv kev sib piv nrog ib tug ntsia hlau ib, ntxaib ntsia hlau extruder muaj ib tug zoo superiority nyob rau hauv ib tug series ntawm kev ua tau zoo indexes xws li curing degree ntawm cov khoom, pellet uniformity, pellet nto roughness, cov khoom muaj feem xyuam rau kev ua thiab hais txog.
Ntau- ua haujlwm ntawm cov khoom siv
Kev sib dhos tshwj xeeb ntsia hlau yog siv, kom ntau yam khoom tuaj yeem tsim tau yog tias tsuas yog hloov cov ntsia hlau los yog hloov kev tsim khoom thiab kev ua haujlwm.
Uniqueness ntawm cov khoom siv
Lwm yam thev naus laus zis yog qhov nyuaj rau lossis tsis tuaj yeem tsim cov khoom lag luam thiab cov khoom hauv qee cov duab uas tau tsim los ntawm kev ua haujlwm extruding no.
High -cov khoom zoo
Qhov kev ua haujlwm extruding no zoo heev rau kev ua haujlwm siab - kub thiab luv - lub sijhawm ua haujlwm, nws tau muab kev txhim kho khoom noj khoom haus zoo dua thaum txo qhov sib txawv los tiv thaiv- khoom noj khoom haus hauv cov khoom thiab ua kom tsis muaj menyuam.
Kev siv lub zog zoo
Cov txheej txheem ua noj ntawm qhov kev ua haujlwm extruding no tuaj yeem kho cov khoom siv hauv ib qho kev kawm zoo, txaus siv chav thiab txo lub zog noj, thiab yog li cov txheej txheem tuaj yeem txuag tau.
Yooj yim thiab raug tswj qhov system
Flow thiab flow ratio ntawm tag nrho cov ntaub ntawv tuaj yeem raug tswj los ntawm kev tswj hwm nws tus kheej, thiab cov txheej txheem sib txawv tuaj yeem raug kaw, txhawm rau muab lub hauv paus rau kev tsim khoom yav tom ntej lossis kev hloov pauv ntawm kev ua haujlwm.
Yam tsawg kawg nkaus dej khib nyiab
Qhov kev ua haujlwm extruding no tuaj yeem ua kom tsis txhob muaj dej khib nyiab; qhov no yog qhov zoo tshaj plaws rau cov tuam txhab pub khoom noj uas muaj qhov nce siab kom txo qis kev cuam tshuam ntawm kev tsim khoom ntawm ib puag ncig ib puag ncig.
Technical parameters
Qauv | 902Ⅰ | 1202Ⅰ | 1502Ⅰ |
Peev xwm (T / h) | 2.0-3.5 | 5.2-8.0 | 8.0-14.00 |
Screw txoj kab uas hla (mm) | 100 | 132 | 166 |
L/D | 20:1 | 16:1/20:1 | 16:1 |
Main tsav (Kw) | 110/132 | 160/200 | 315/355/400 |
Lub cev muaj zog (Kw) | 15 | 18.5 Nws 7.5 | 11 np22 |
Feeder zog (Kw) | 1.5 | 1.5/2.2/3.0 | 3.0/4.0 |
Nco tseg
1. The models with the suffix "I" in the type code are specialized for aqua-feed production.
2. Cov ntaub ntawv saum toj no tsuas yog hais txog aqua- pub extrusion.
