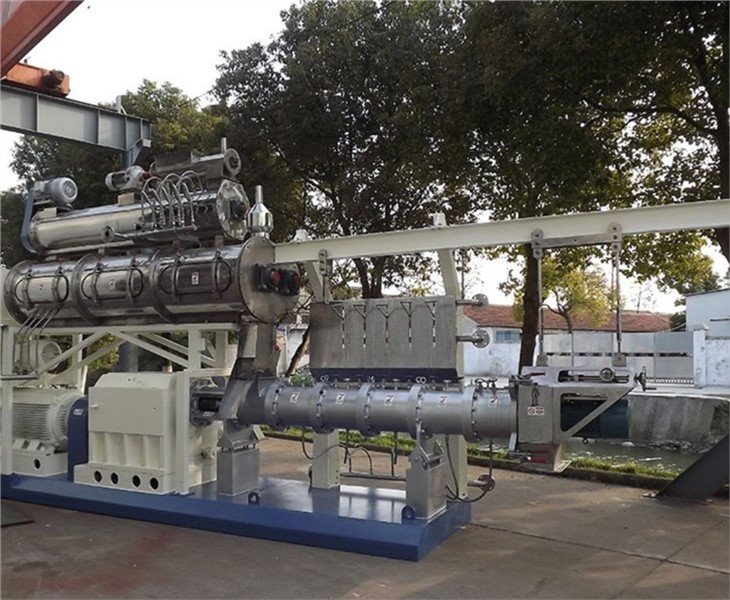

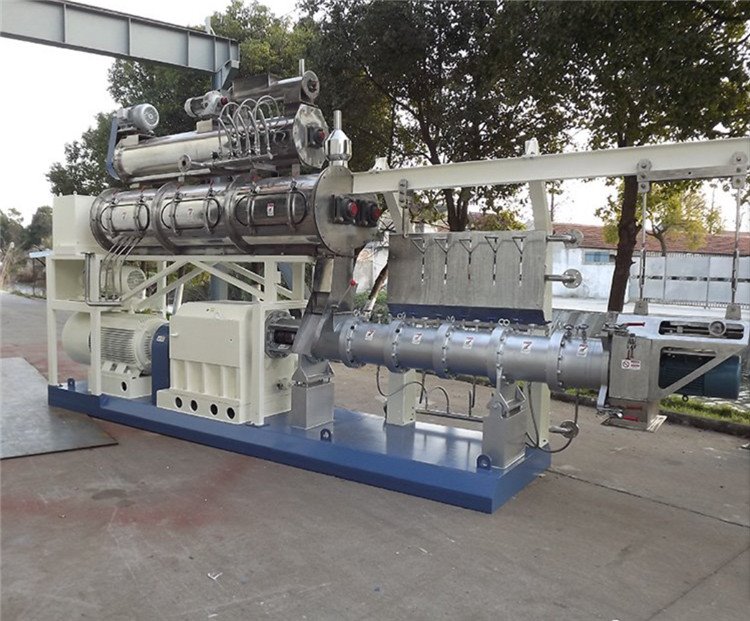

Twin ntsia hlau Tsiaj zaub mov extrusion
Cov qauv no muaj txiaj ntsig zoo extruder rau aqua- pub, zaub mov, khoom noj tsiaj thiab cov khoom siv raw, tshwj xeeb tshaj yog cov ntawv nplaum.
A-Kev ua haujlwm yooj yim
PLC thiab kov npo kom yooj yim tswj; los ntawm -pass muab rau kev zam kev thaiv; ua haujlwm yooj yim, meej thiab txhim khu kev qha.
B-Kev ua haujlwm siab
Optimal chamber groove thiab ntsia hlau ya davhlau profiles, yam tsawg kawg nkaus SME input; DDC txias txias thiab lub kaus mom nrog ruaj khov thiab yooj yim extrusion, siab tshaj plaws siv zog; tshwj xeeb ncua kev txiav cutter, kev hloov kho yam tsis muaj sijhawm.
C-Kev hloov pauv siab
Modularized chim thiab ntsia hlau qauv nrog ntau yam ntxiv-ons, yoog mus rau ntau yam siab- rog lossis - cov qauv dej noo; yooj yim tswj ntawm kub, siab thiab ceev, minimizing reconfiguration tau
Feeder
Lub feeder yog tsuas yog siv rau kev pub cov khoom rau txias nyob rau hauv ib tug npaum li cas, nws nruab lub cev muaj zog yog ib tug kuj tsis paub meej zaus tswj lub cev muaj zog, thiab lub kiv puag ncig tuaj yeem hloov kho raws li cov khoom siv tiag tiag. Txhawm rau ua kom tiav qhov kev xav tau ntawm kev tu, lub thoob sab sauv yog nruab nrog lub qhov rooj ntxuav.
Txoj kab uas hla lub tog raj kheej txias
Txoj kab uas hla lub tog raj kheej txias yog siv rau qhov system no; lub txias txias yog ua los ntawm tag nrho cov stainless hlau thiab tsuas yog tsim los ntawm vaj tse, agitator ncej thiab tsav tsheb pab txhawb nqa. Cov yam ntxwv tseem ceeb yog qhia raws li hauv qab no: ob lub agitator shafts nrog txawv diameters thiab revolutions agitate cov ntaub ntawv los ntawm rov qab cross txav, agitation nyhuv yog zoo, yog li ntawd cov khoom, chav, dej los yog lwm yam kua yuav tsum txaus tov; thiab lub vaj tsev uas muaj peev xwm loj yog siv, yog li ntawd cov khoom yuav khaws cia ntev txaus nyob rau hauv ib qho kub thiab noo noo nyob rau hauv lub txias txias, thiaj li ua kom tiav pre- kho.
Technical parameters
Qauv | 902Ⅰ | 1202Ⅰ | 1502Ⅰ |
Peev xwm (T / h) | 2.0-3.5 | 5.2-8.0 | 8.0-14.00 |
Screw txoj kab uas hla (mm) | 100 | 132 | 166 |
L/D | 20:1 | 16:1/20:1 | 16:1 |
Main tsav (Kw) | 110/132 | 160/200 | 315/355/400 |
Lub cev muaj zog (Kw) | 15 | 18.5 Nws 7.5 | 11 np22 |
Feeder zog (Kw) | 1.5 | 1.5/2.2/3.0 | 3.0/4.0 |
Nco tseg
1. The models with the suffix "I" in the type code are specialized for aqua-feed production.
2. Cov ntaub ntawv saum toj no tsuas yog hais txog aqua- pub extrusion.
