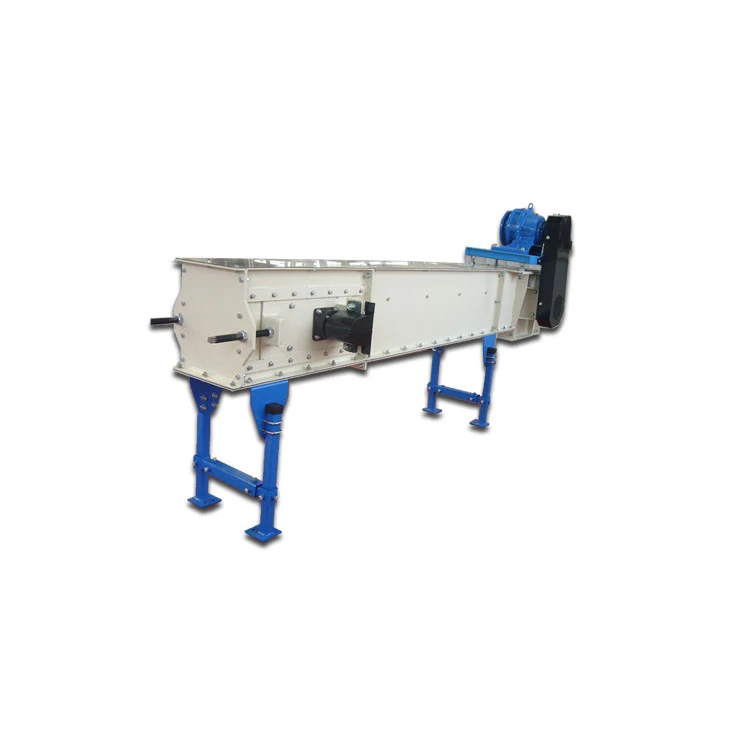

Series U-Drag Conveyor

U- hom nplej cab conveyor

TGSSU U-Trough drag conveyor

Muaj feem xyuam rau txoj kab rov tav lossis txoj kab me me (tsawg dua lossis sib npaug li 15 degree) kev xa khoom ntawm cov khoom loj

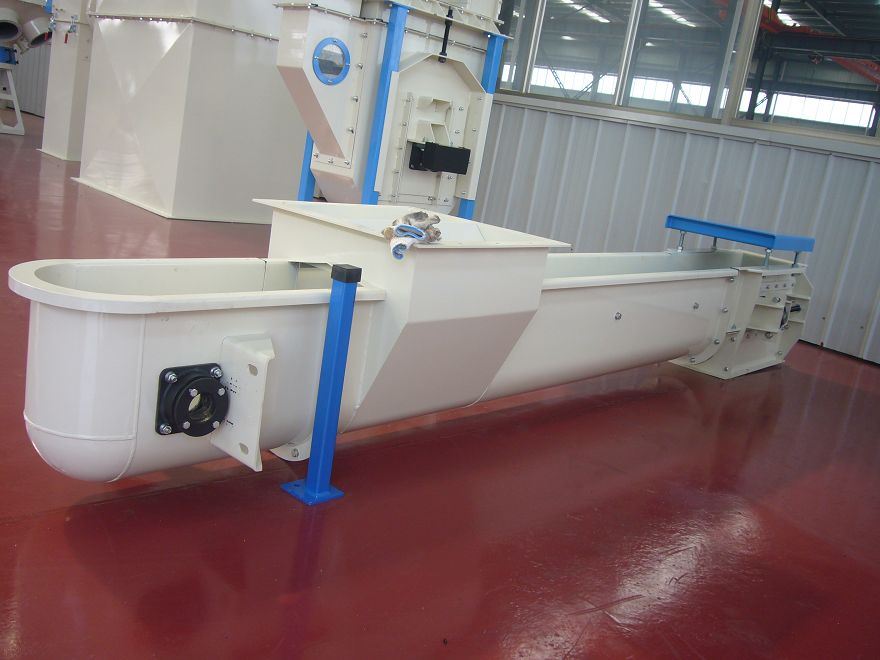

U trough structure and wear resistant paddles made of plastic, no residue and long service life.

Dav siv nyob rau hauv pub, nplej thiab ua ntej- sib tov ua.

Performance nta

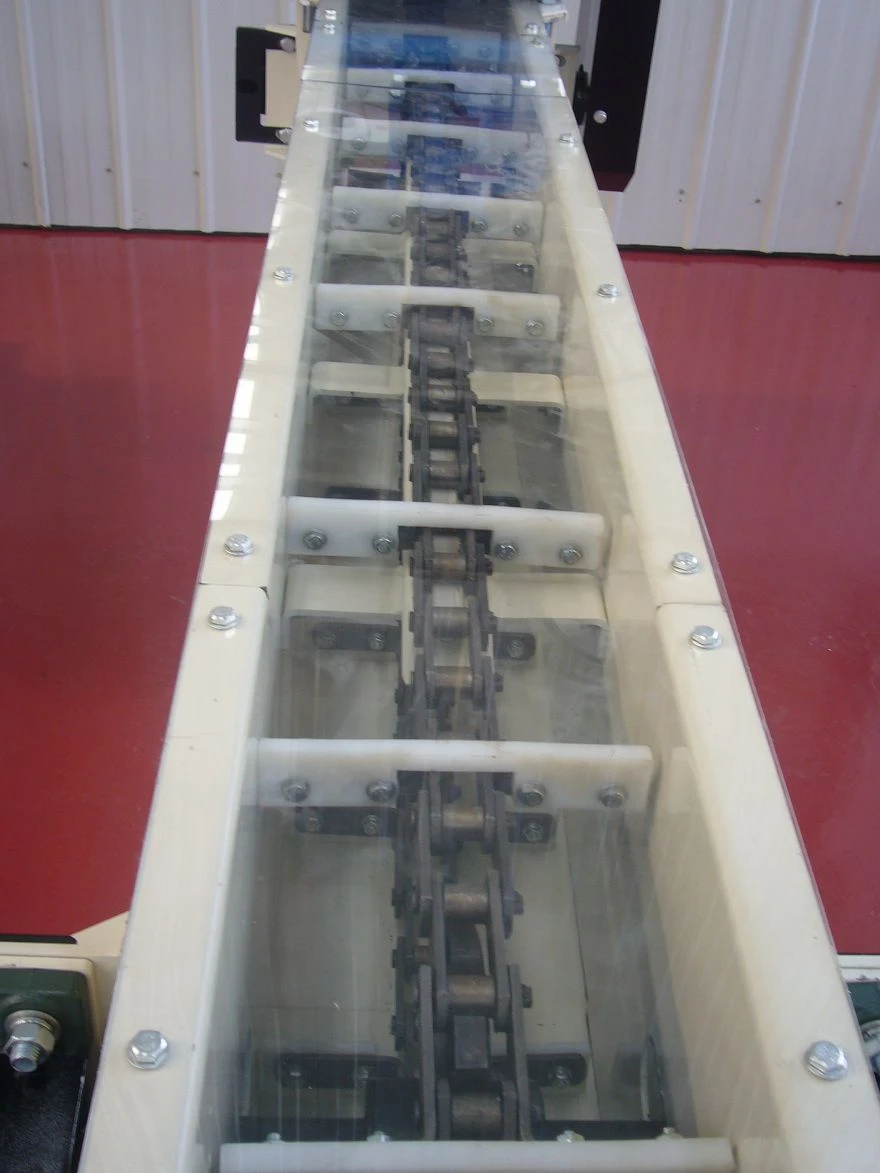

TGSU drag conveyor is generally applicable for conveying powdery material, its bottom is a welded U-type structure, and drag  is made of engineering plastics, which is of low noise, less wear, no residues and long service life;

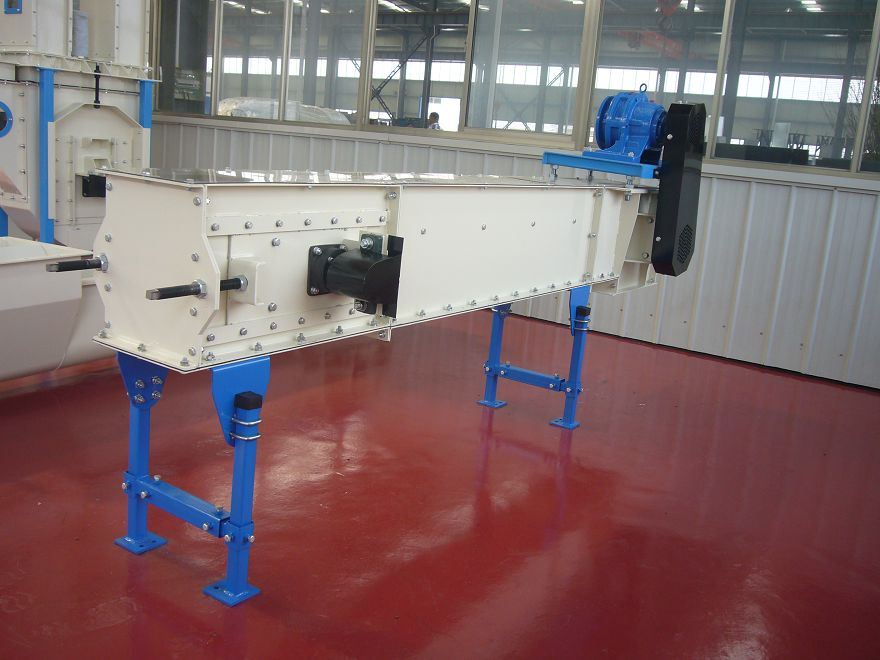

TGSS drag conveyor is generally used for conveying granular material, its bottom is connected by bolts, drag  is made of engineering plastics, which is of low noise and less wear; base plate and side plate can be conveniently replaced and service life is long;

It is of simple structure, less floor area and convenient installation, can be used on a narrower place with no special requirements on working environment;

Running is safety and reliable, operation and maintain are easy and convenient with no complicate control technology;

Sealing performance is good, material is conveyed in sealed trough with no splashing and leakage, it is dust proof, water proof and explosion proof, so that pollution on material can be avoided, working condition of workers is perfected and environmental pollution is avoided;

Technological arrangement is flexible and convenient, feeding and discharging devices are simple and reliable, which can satisfy feeding and discharging at several points, and also can be sued for conveying material in different directions;

Damage to material is small, consumption is small, so that production cost is reduced and efficiency is improved;

Drag chain and machine trough are easy to be worn;

Nws yog ib qho yooj yim los ua adhesion thiab compact thaum conveying powdery khoom nrog siab noo noo, raws li zoo raws li floating saw.

Drag saw conveyor xaiv

Zoo li feem ntau cov neeg kho tshuab conveyors muaj ntau yam ntawm cov cab saw conveyor tsim nta xaiv los ntawm. Lub chaw tsim khoom muaj koob npe tuaj yeem ua cov lus qhia rub saw conveyor raws li koj daim ntawv thov yuav tsum tau thiab pob nyiaj siv.

Kev huv huv

Inlet kev txhawb nqa puag

Corner sprockets (90˚ Idler Housing)

Hinged access npog

Hinged inlet chute access npog

Inlet vibration – electric or pneumatic

Tube mounted inlet qhov hluav taws xob

Tube valve nrog chute (pneumatically actuated inline tawm valve)

Extended muaj peev xwm chute (plua plav hood, splash guard, hau)

Phau ntawv los yog pneumatic inlet baffle

Kev sib hloov sensor

Cua tshem tawm

Chain vibrator

Level probes – NEMA 4 or 7

Mobile puag (layout / ntev txwv)

Tswj (nrog lossis tsis muaj VFD)

Pom iav

Static grounding

90˚ custom angle sweeps

Explosion Hygienic xaiv (kev thov nyob ntawm)

Technical parameters
