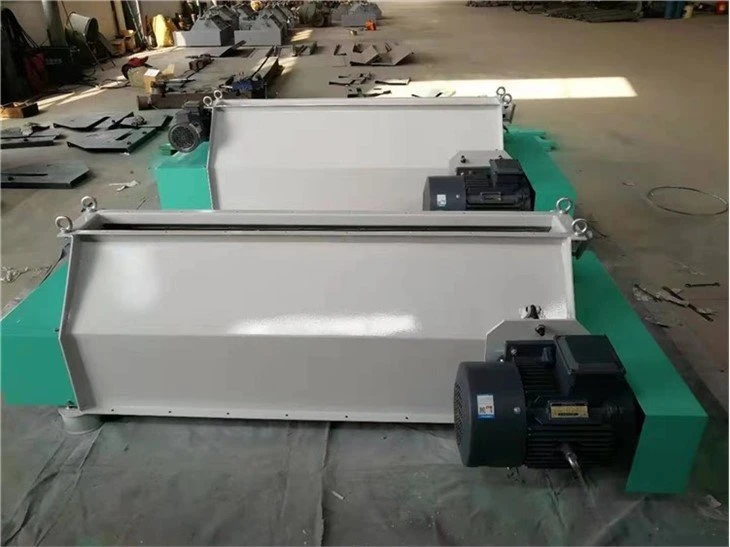

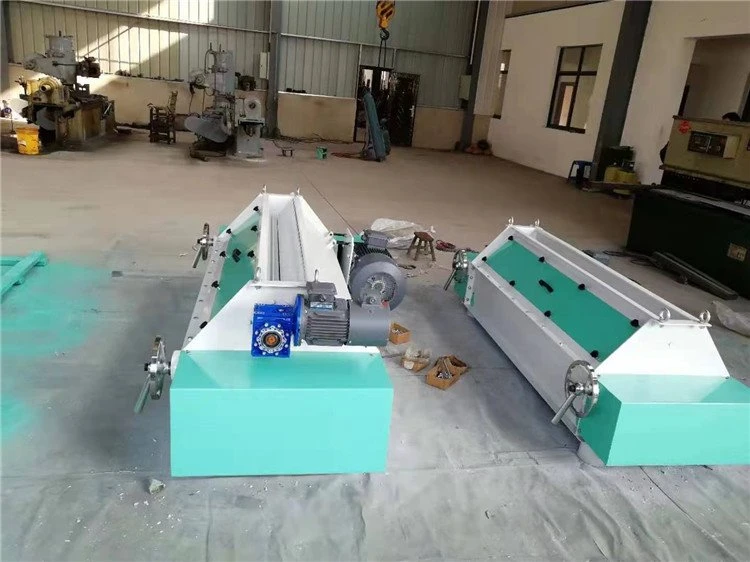

Crumbler rau nqaij qaib
Tus nqi zoo tshaj plaws los tsim cov pellet me me rau cov nqaij qaib, tsiaj txhu thiab cov tsiaj hauv dej.
Nta
Khoom taw qhia tsim (yeem) thiab kho qhov sib txawv ntawm cov menyuam rau kev hloov pauv yooj yim dua
1. Cov koob no yog cov cuab yeej tshwj xeeb los tsoo cov pellets loj rau cov pellets me. Nws yog tsim nyog rau crushed pellets ntawm ntau qhov ntau thiab tsawg los ntawm 0.6-1.5mm (zoo hom) los yog 1.0-2.5mm (hom li qub).
2. Compact qauv pab txhawb kom uniformly txo particle loj. Kev hloov kho ntawm qhov kawg loj yog yooj yim.
3. Tau nruab nrog cov yob khiav hauv qhov sib txawv ceev tuaj yeem ua rau cov ntaub ntawv pellet raug nyem, txiav thiab rub ntawm ob lub yob. Qhov no ua rau zoo meej crushing nyhuv.
4. Qhov tshwj xeeb pub hopper thiab bypass ancillary cov cuab yeej ua lub luag haujlwm tsis yog hauv kev kho kom zoo xwb, tab sis kuj qhia cov ntaub ntawv uas tsis tas yuav raug crushed rau bypass kwj, uas tuaj yeem kaw thaum lub bypass ntws los ntawm kev mus ncig.
5. Nqaim V siv tsav kom paub tseeb tias kev sib kis tau zoo, tsis tshua muaj suab nrov, txhim khu kev qha khiav thiab ua haujlwm yooj yim.
6. Txais nrog tshwj xeeb rau cov menyuam nyob deb kev hloov kho mechanism, uas yog ib qho yooj yim thiab txhim khu kev qha.
Technical parameters
Qauv | Peev xwm (T / h) | Main lub cev muaj zog (Kw) | Nco tseg |
MUS 2080 | 5-8 | 7.5 | 2 yob |
MUSL24110Ⅱ | 10 | 11 ntxiv 1.5 | 3 yob |
MUSL24165Ⅱ | 20 | 15 plus 1.1 | 3 yob |
MUS 24110 | 10 | 11 | 3 yob |
MUS 24165 | 2-4 | 7.5 plus 1.1 | 3 yob |
MUSL 24110 X | 20 | 15 | 3 yob |
MUS 30180 | 22 | 22 | 3 yob |
MUSL 30180X | 4-8 | 22 plus 1.1 | 3 yob |
MUSL30180Ⅱ | 22 | 22 plus 1.1 | 3 yob |
Nco tseg:X txhais tau tias tshwj xeeb crumbler rau cw noj
