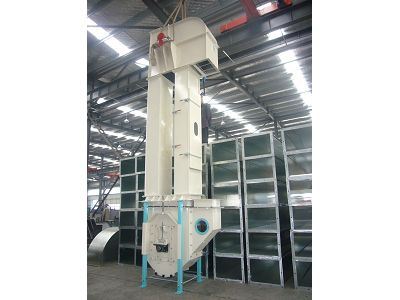

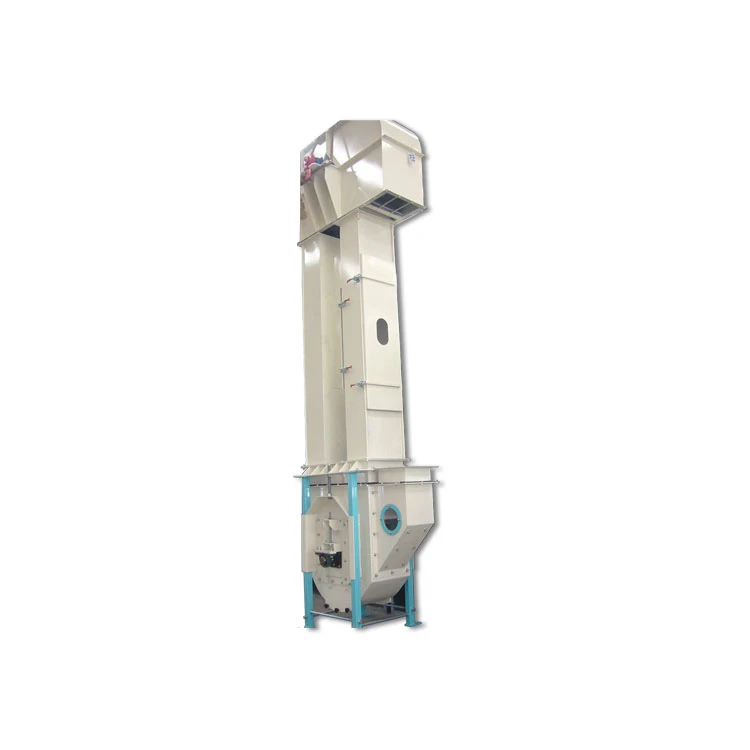

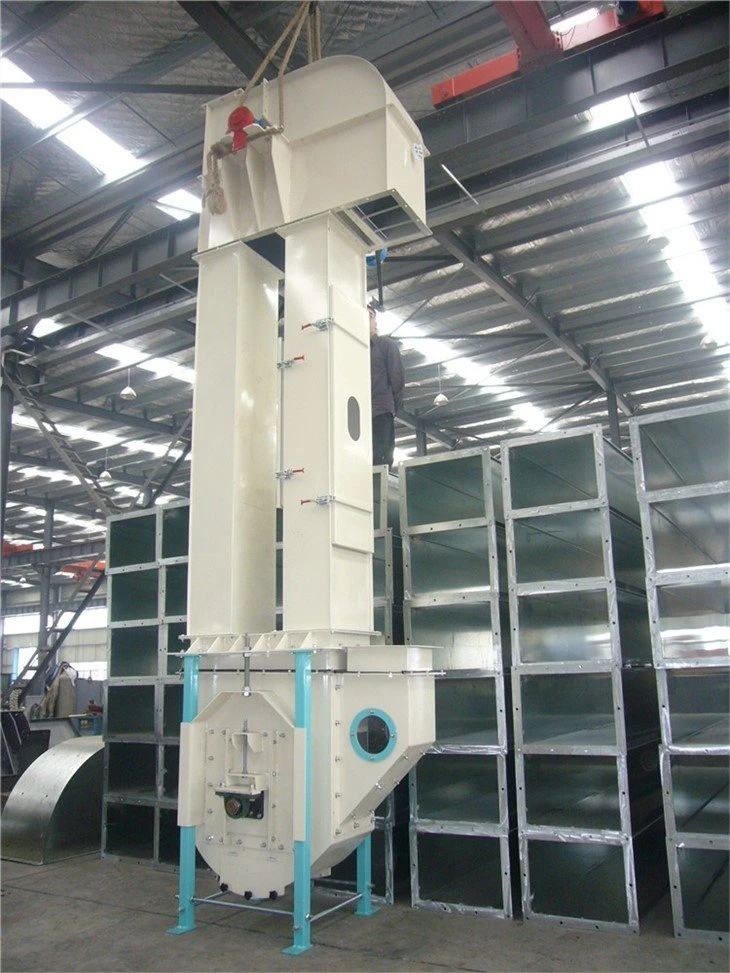

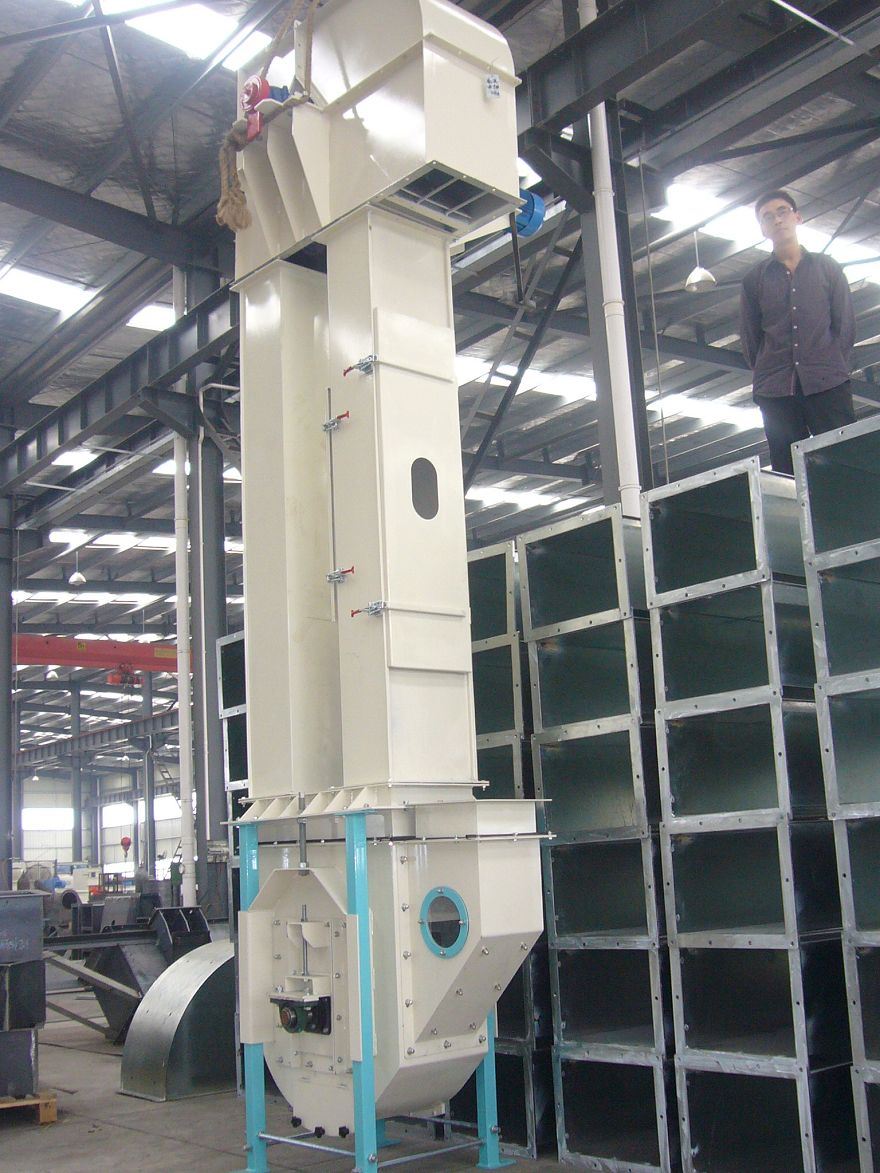

TDTG thoob of elevator

Grains thoob of elevator

TDTG thoob of elevator

These models have compact structure, small footprint.

Excellent sealing performance and venting in case of dust explosion.

Optional devices for preventing the sideslip and back-stop to ensure safety and belt alignment.

Dav siv rau vertically conveying ntawm hmoov los yog granular bulk khoom nyob rau hauv grain terminals, chaw nres nkoj terminals raws li zoo raws li xws li industries li pub, hmoov, mov, edible roj thiab lwm yam.

Application thiab adaptability

Bucket elevator is vertical continuous conveying equipment, and mainly used for conveying powdery materials in compound feed mills and premix feed mills.

Series thoob of elevator muaj feem xyuam rau kev xa cov ntaub ntawv hmoov, cov ntaub ntawv granular thiab cov khoom me me. Nws tuaj yeem siv rau kev xa khoom ib nrab-cov khoom tiav thiab cov khoom tiav los ntawm cov nplej nyoos hauv kev ua cov nroj tsuag, tshwj xeeb tshaj yog muaj feem xyuam rau kev xa cov ntaub ntawv thaum lub sij hawm tsim khoom noj thiab nplej ua cov nroj tsuag, nrog rau kev xa khoom hauv warehouse, roj cog thiab lwm yam.

Yam ntxwv

The boot section can be installed with forward or backward feed hopper according to customer's requirements;

The working components are mechanically bended, riveted and welded, and have good sealing performance;

The thick and flat rubber belt used as the traction belt is characterized by high strength, strong traction force, low extensibility, high durability and reliability;

The head section is equipped with explosion proof vent that can effectively prevent dust explosion;

It is possible to use straight-coupling drive of cycloid pin-gear speed reducer or secondary drive between speed reducing box and chain wheel (or V-belt), the driving is stable and reliable with low noise and easy for installation and repair.

It is possible to install alarm devices for speed measurement and sideslip as required by customers, so as to ensure safe and normal production; an automatic backstop device can be equipped against blockage of materials due to power failure;

The head section and boot section are equipped with hosting mechanism for the convenience of dismantling, mounting and maintenance.

Qhov siab mounting yog xaiv tau nyob rau hauv qhov kev tso cai.

Technical parameters
